Lifts for people with limited mobility
V3 vertical platform lift

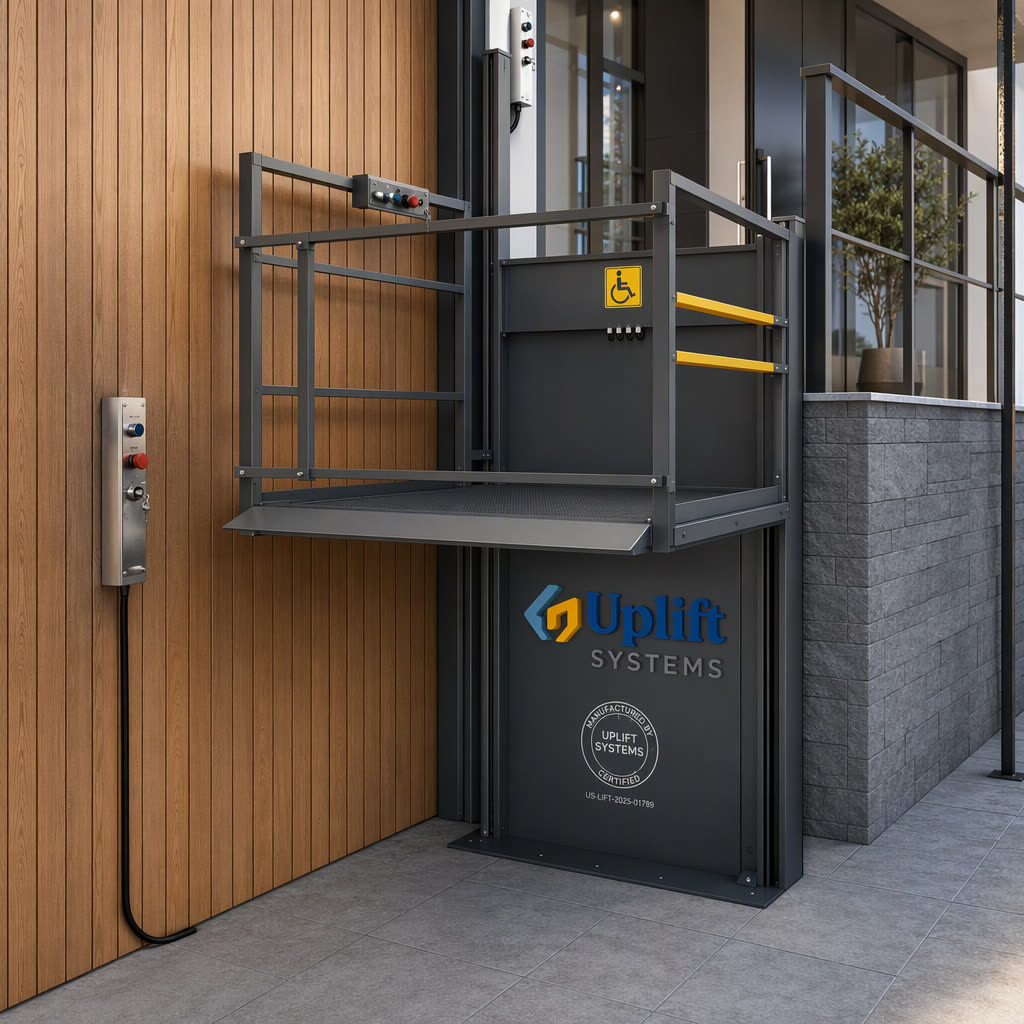

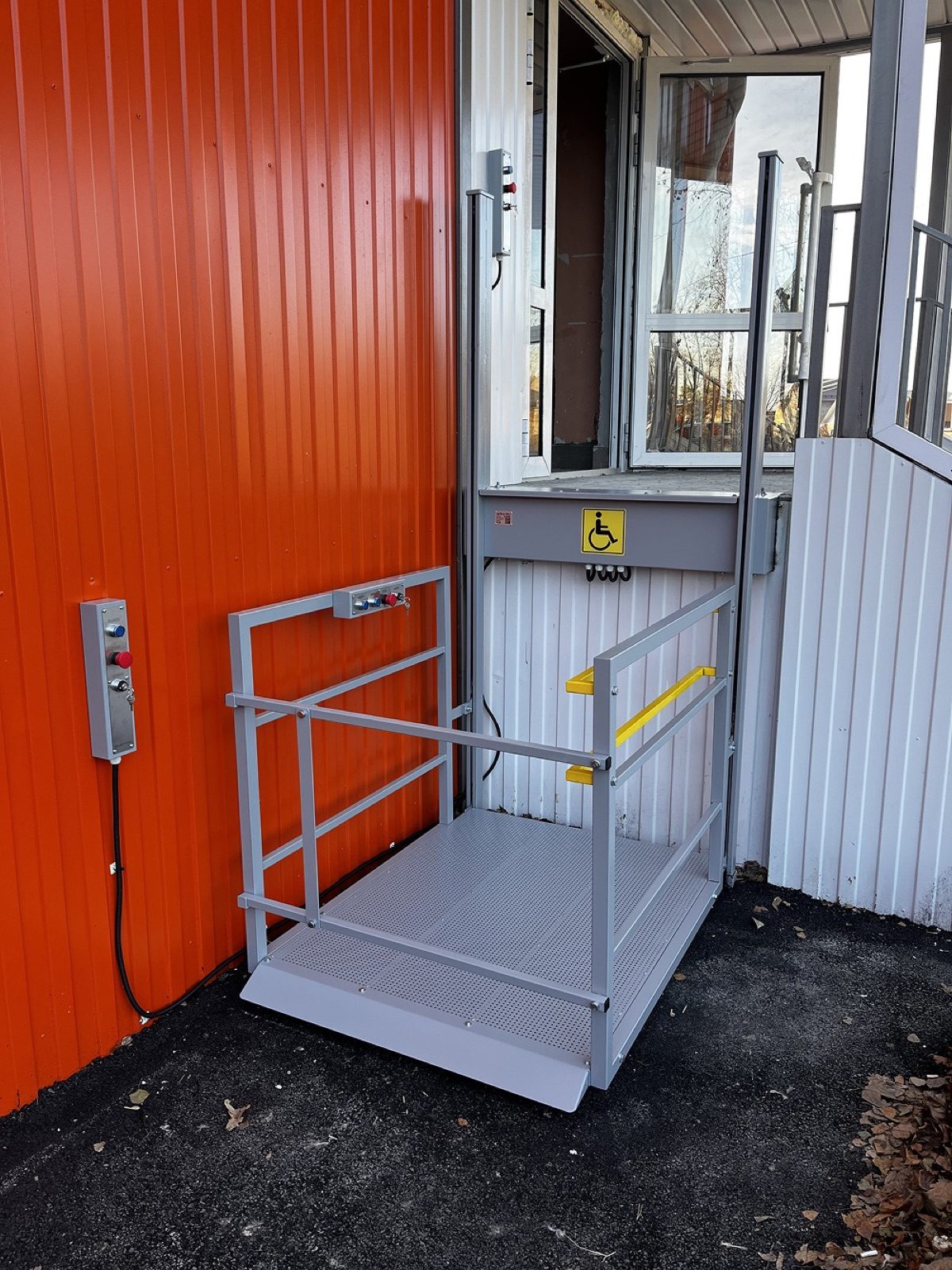

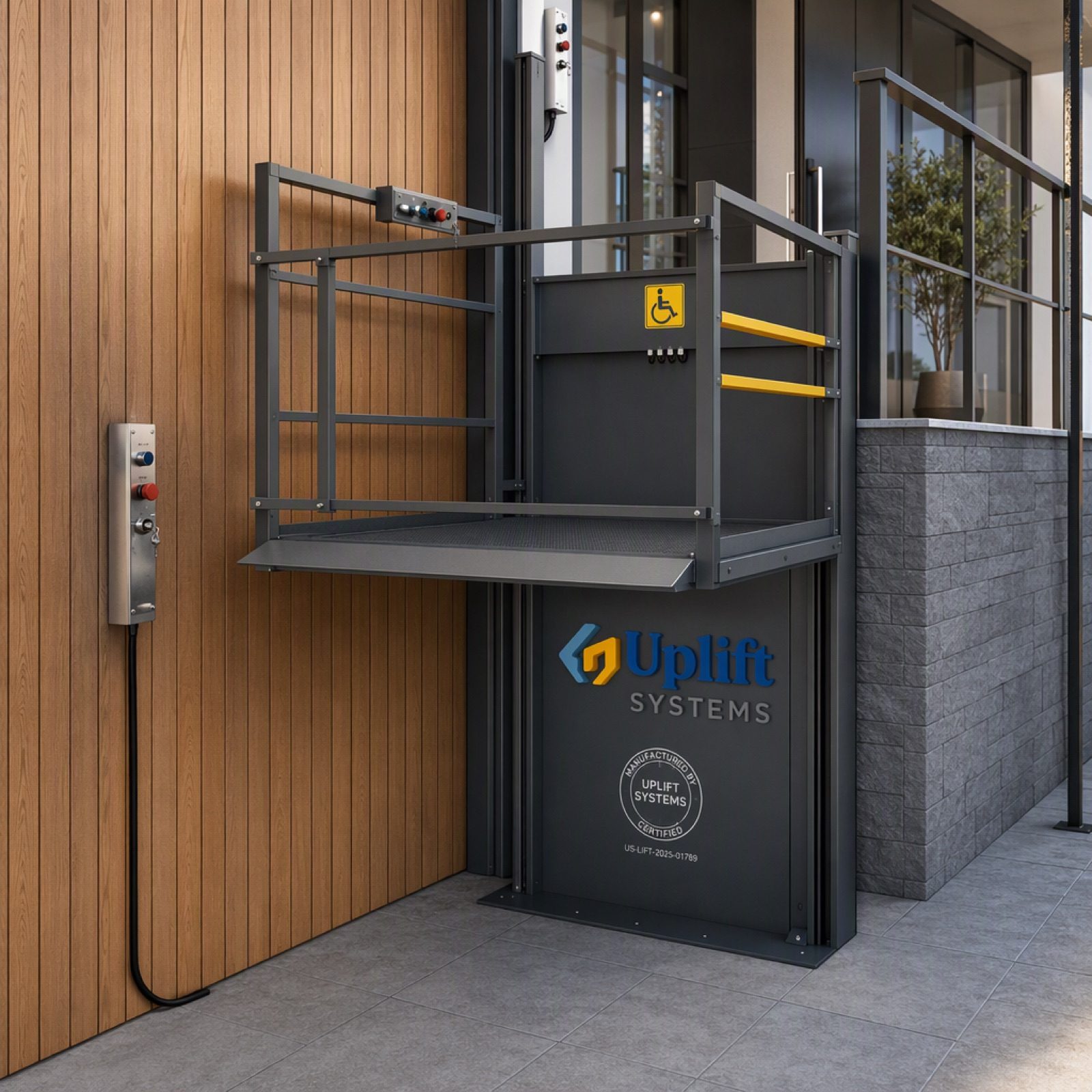

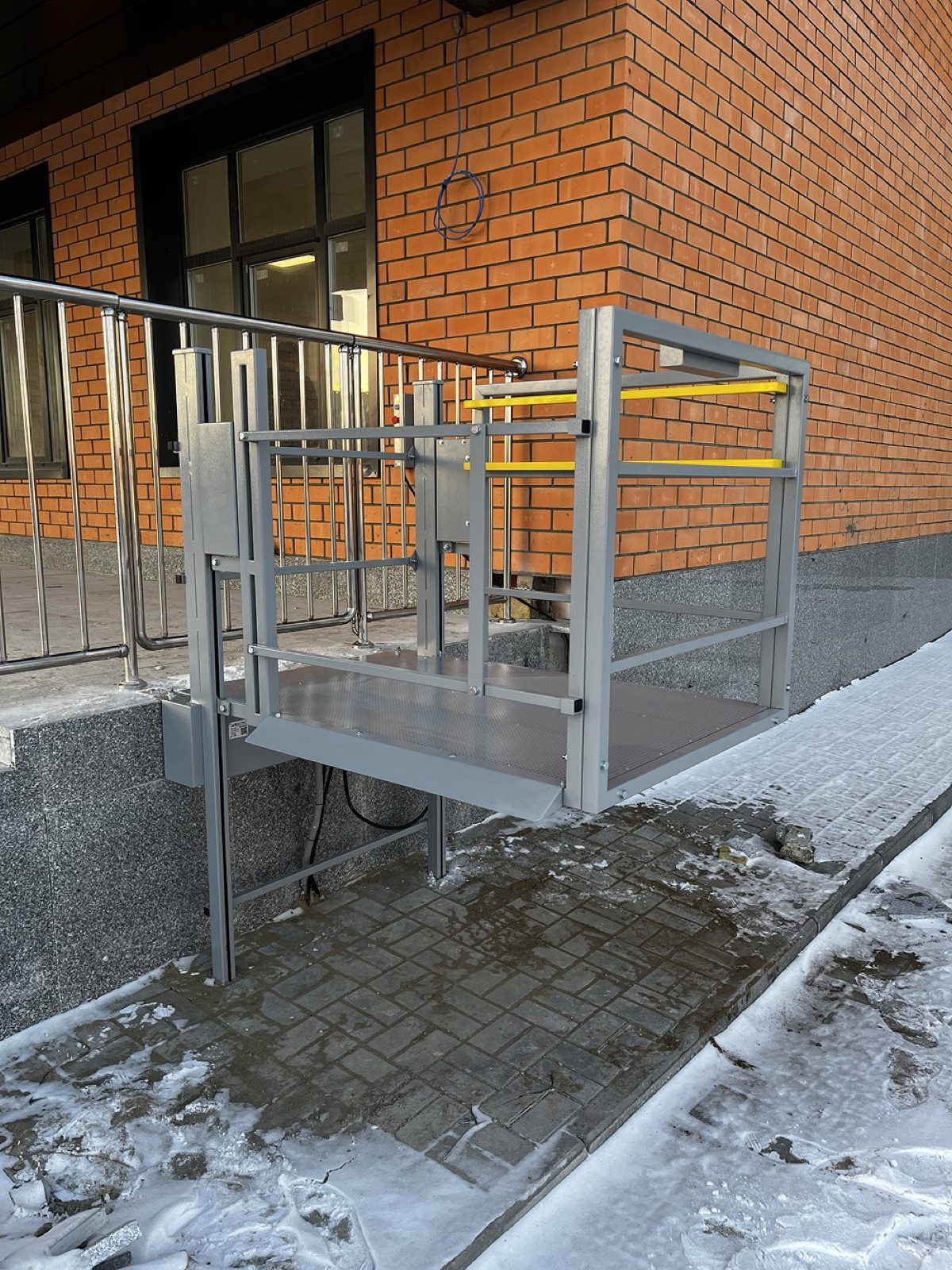

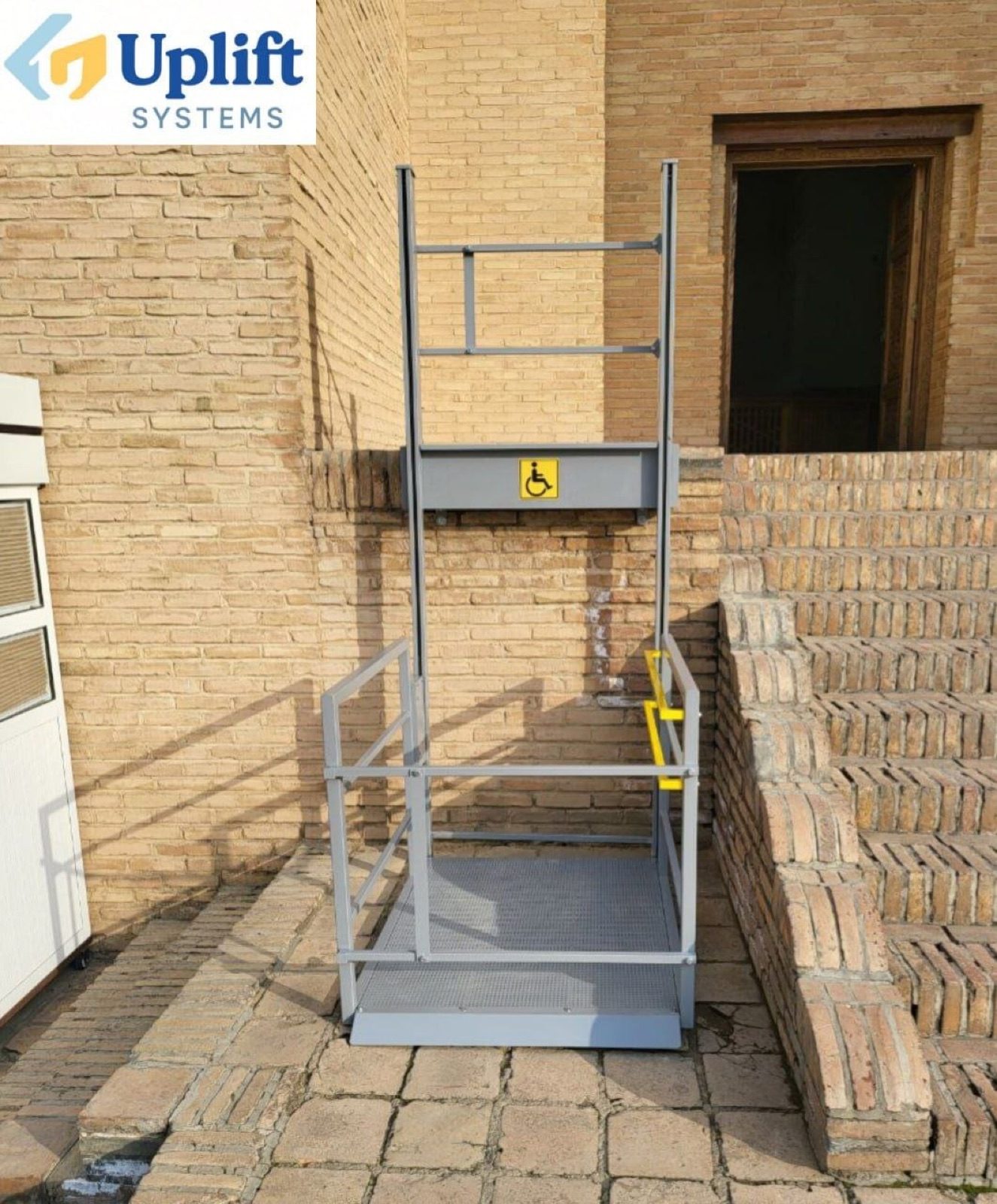

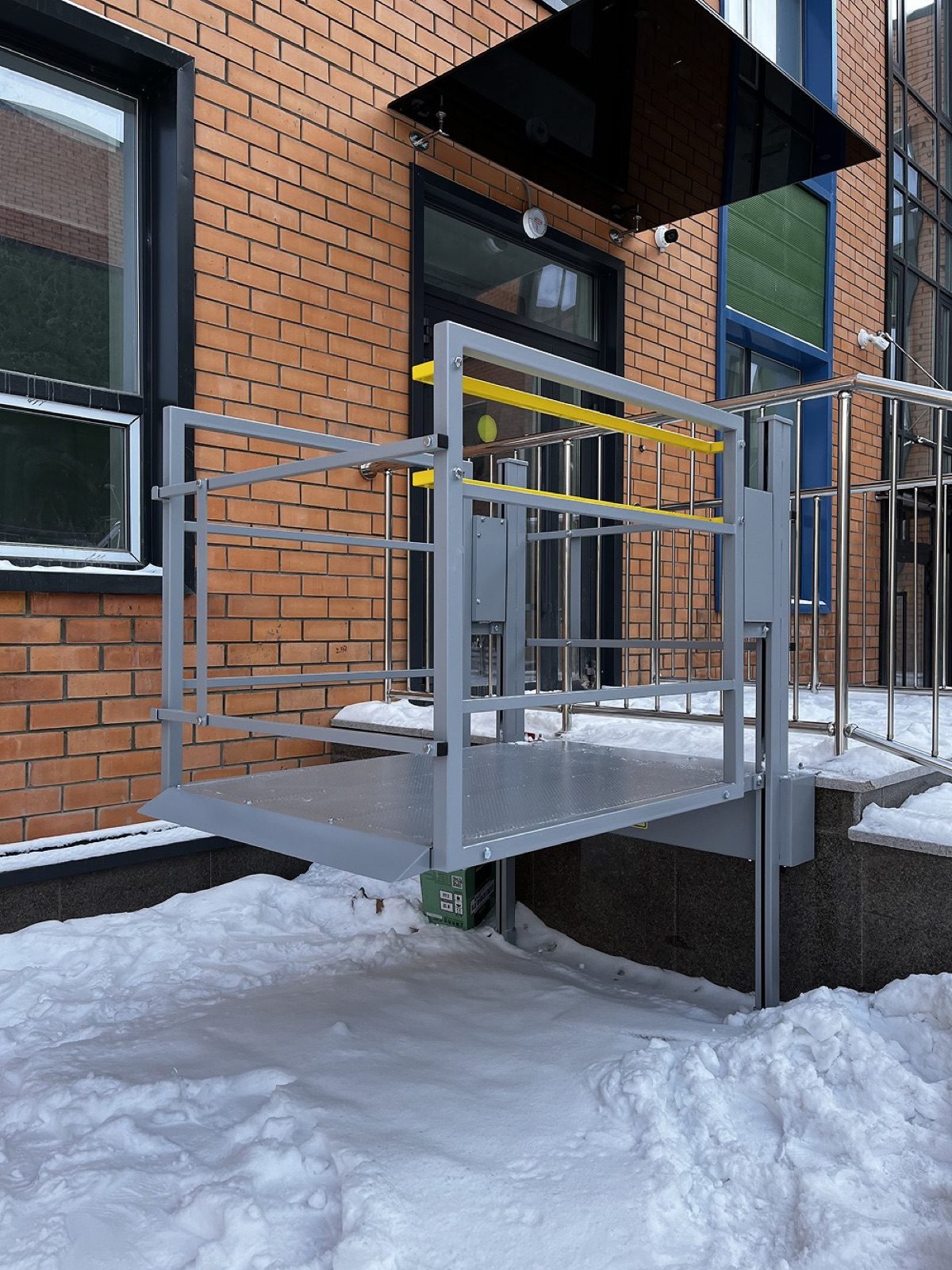

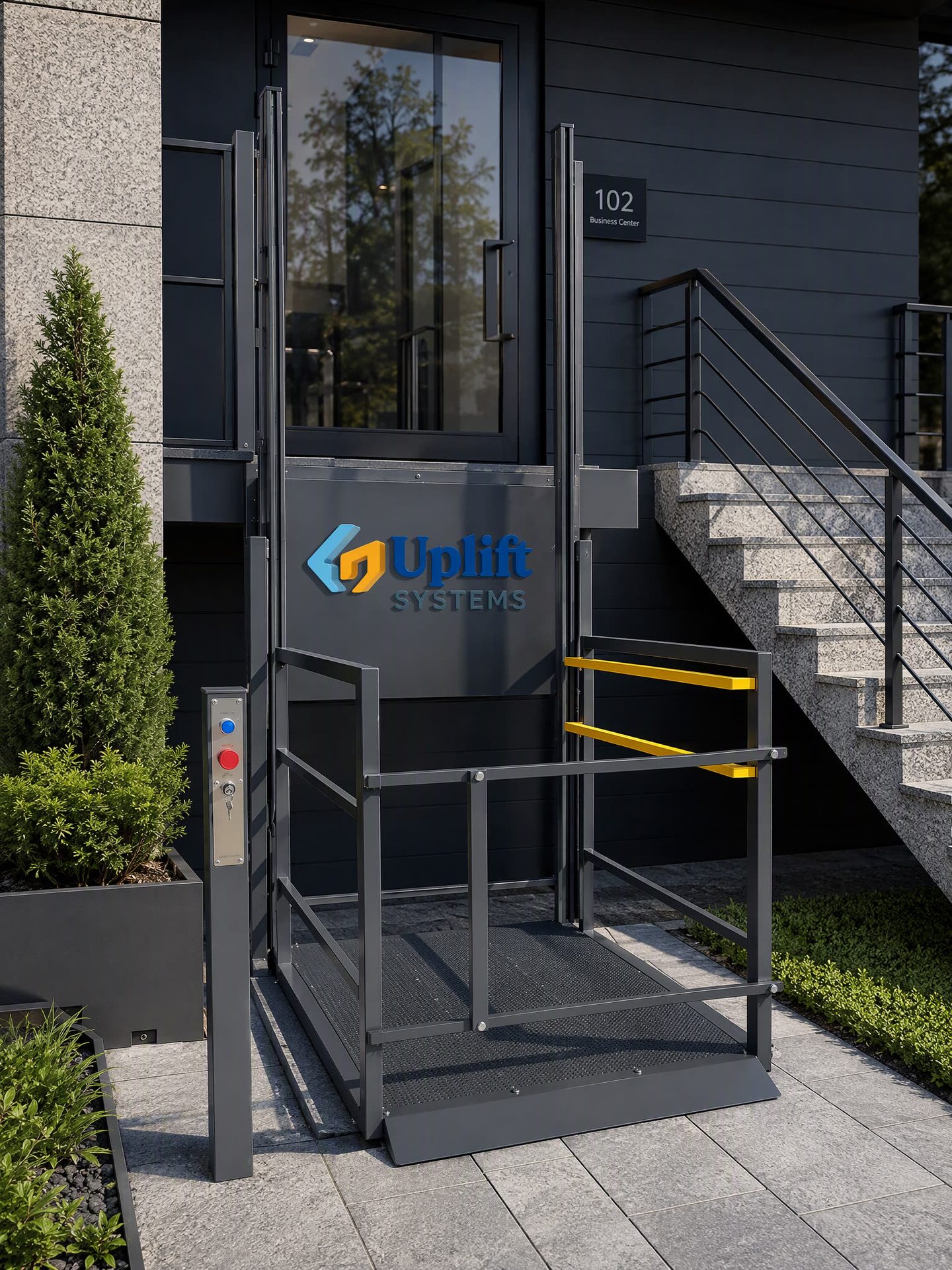

This vertical platform lift raises a person in a wheelchair from ground level to the entrance porch. Travel height up to 1.6 m, lifting capacity 250 kg. The platform has a folding ramp for wheelchair access, an enclosure with safety sensors and a control station with buttons and a key. The platform can be through-loading or single-side entry.
Interactive 3D model: drag to rotate it, switch the time of day and the lift height.
- Model
- V3
- Lift type
- Vertical, for people with limited mobility
- Travel height
- Up to 1.6 m
- Lifting capacity
- 250 kg
- Platform size (L×W)
- 1250×900 mm
- Drive mode
- Hydraulic or screw drive
- Lifting speed
- 0.1–0.15 m/s
- Entry/exit direction
- 180° walk-through or single-sided
- Supply
- 220 V, 50 Hz
- Version
- Stainless steel or powder coating to RAL
- Base
- No pit; wall fixing or a prepared base
- Travel height up to 1.6 m
- Lifting capacity 250 kg
- Folding ramp for wheelchair access
- Enclosure with safety sensors
- 220 V mains supply
Video
The lift in operation on site.
