Lifts for people with limited mobility

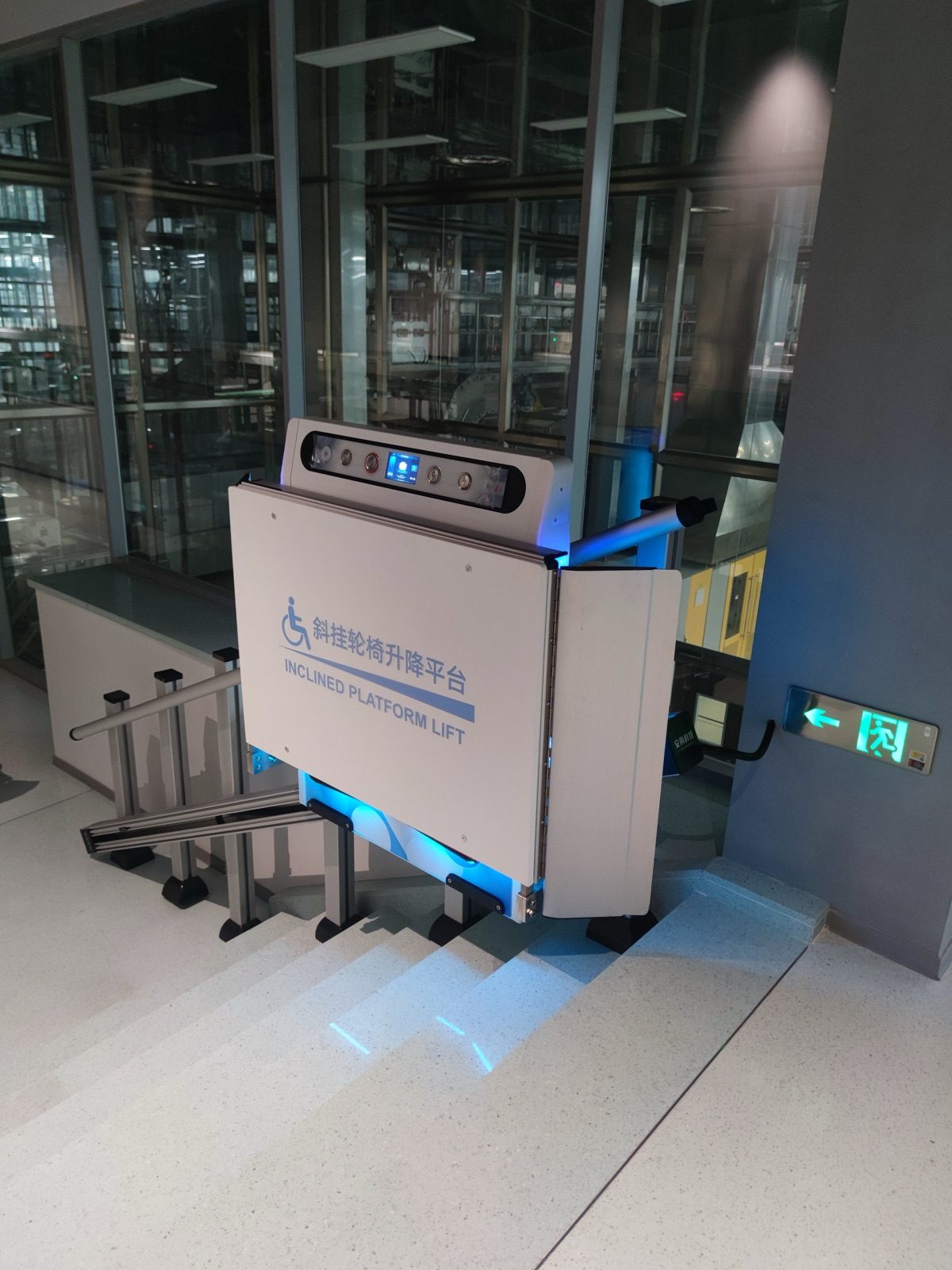

Inclined stair lift
The platform carries a wheelchair along a flight of stairs — straight or curved. Stair pitch up to 35°. When folded, the mechanism sits against the wall and takes 450 mm, so the stairway passage does not narrow. It runs on a battery, so it keeps moving during a power cut. Installed in apartment entrances, clinics, schools and stations.
- Lift type
- Inclined, for people with limited mobility
- Lifting capacity
- 160–225 kg
- Stair pitch
- Up to 35°
- Platform size (L×W)
- 1100×800 mm
- Guardrail height
- 945 mm
- Folded thickness
- 450 mm
- Battery capacity
- 24 V / 10 Ah
- Drive mode
- Rack drive or rope-and-pulley chain
- Control
- Hold-to-run buttons, control panel, call stations
- Travel path
- Straight and curved
- Straight and curved routes
- Stair pitch up to 35°
- Folds against the wall without narrowing the passage
- Runs on a 24 V battery
- Obstacle sensors with automatic stop
- Control panel and call stations
Video

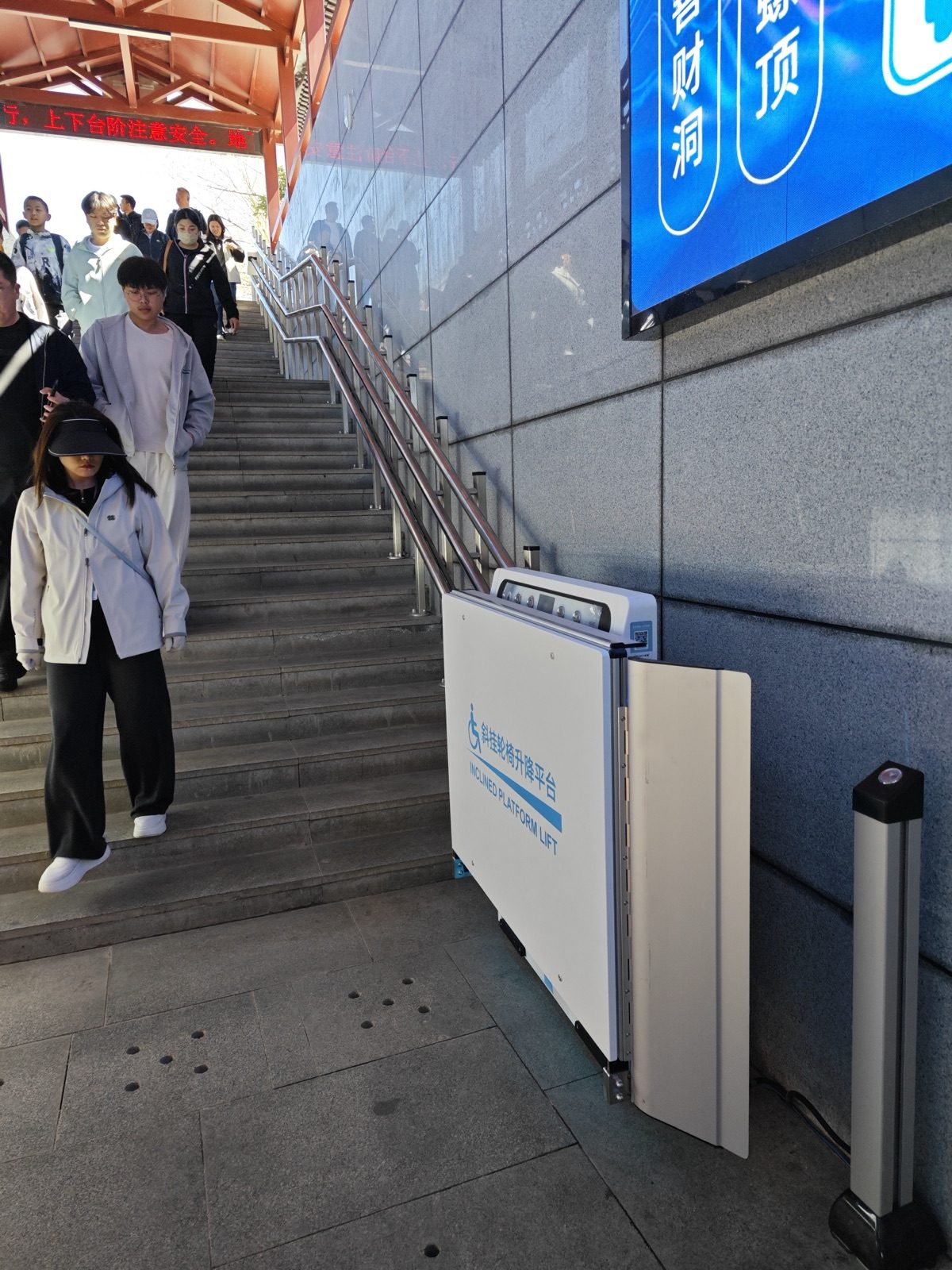

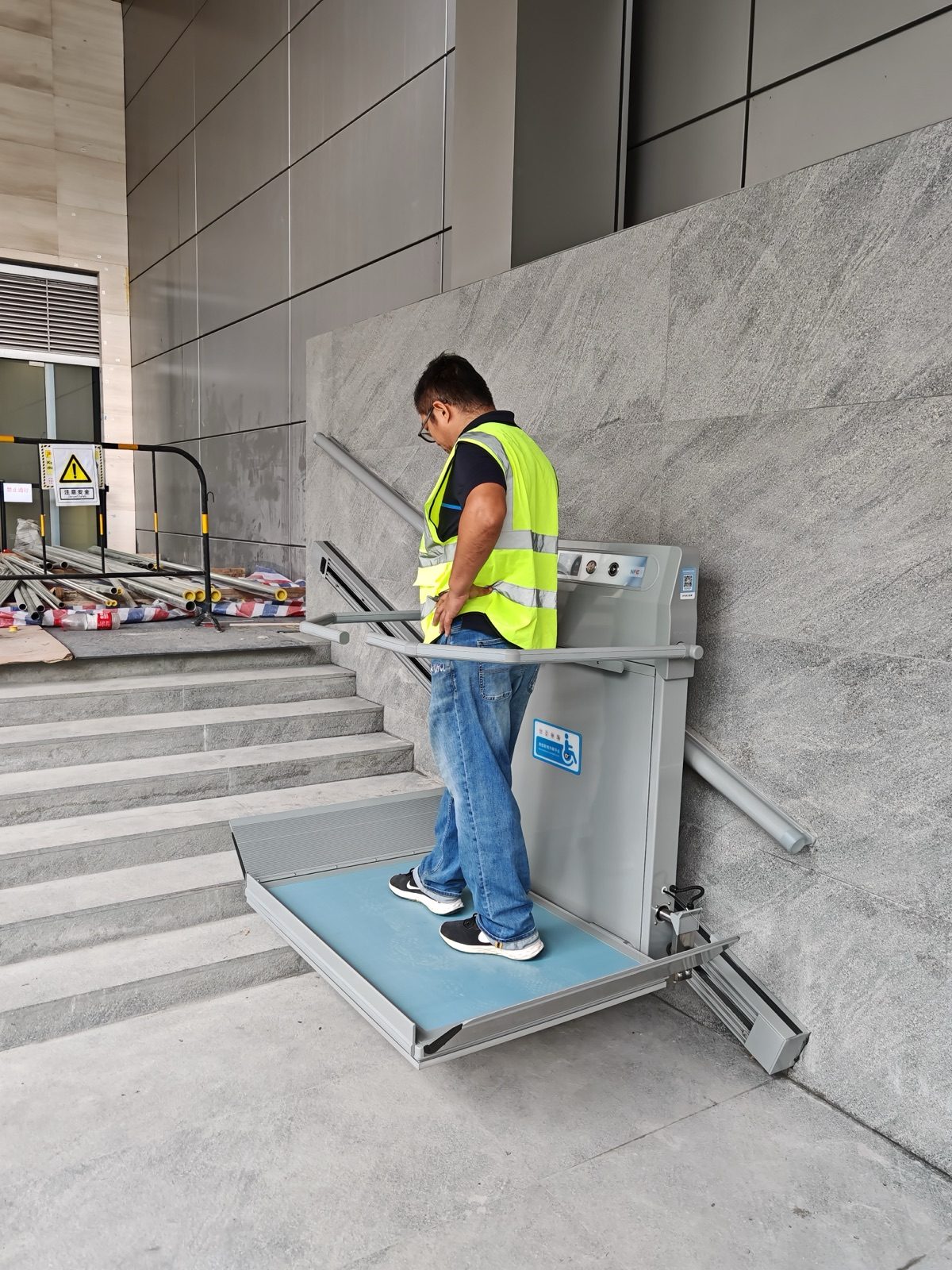

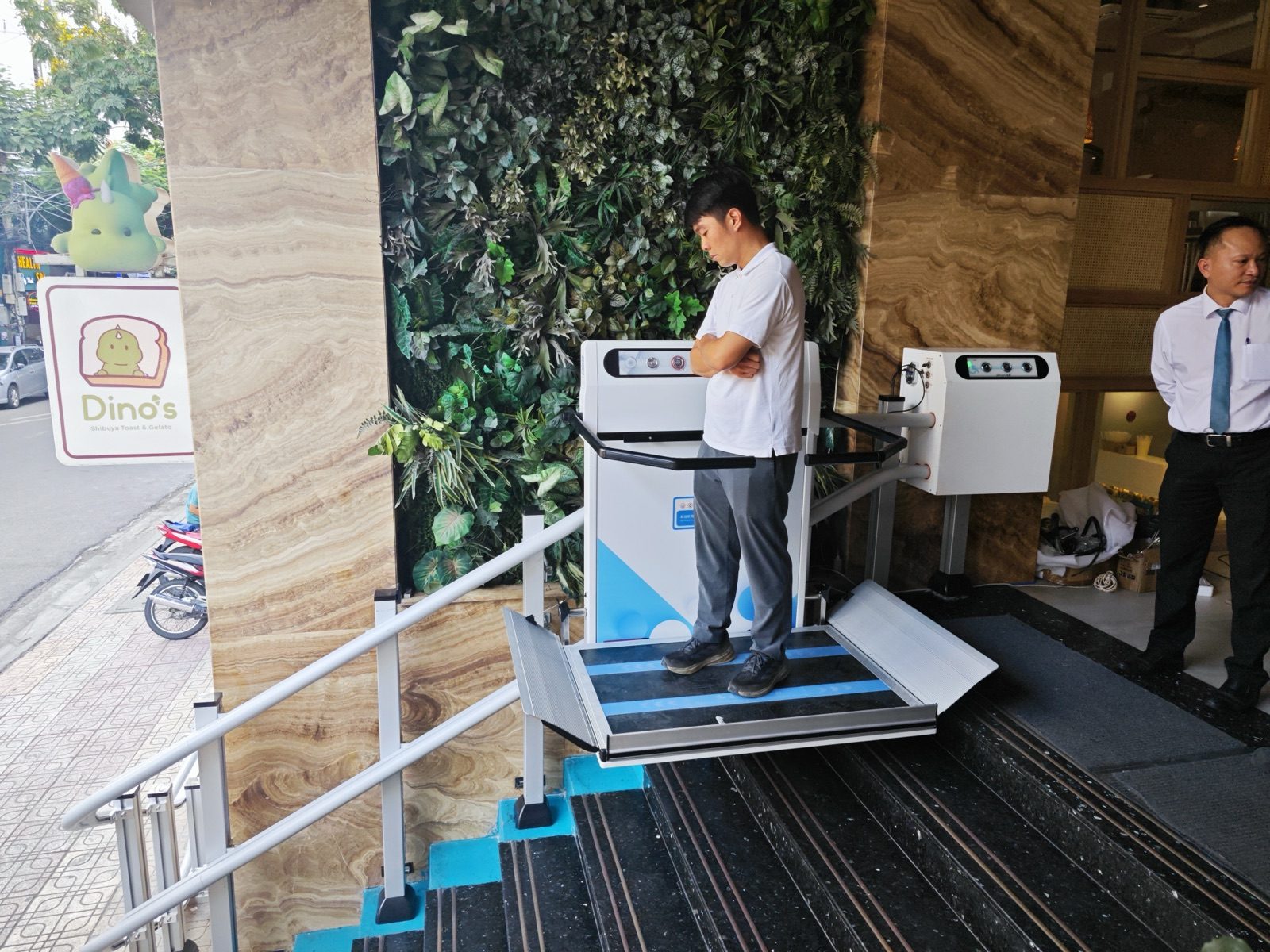

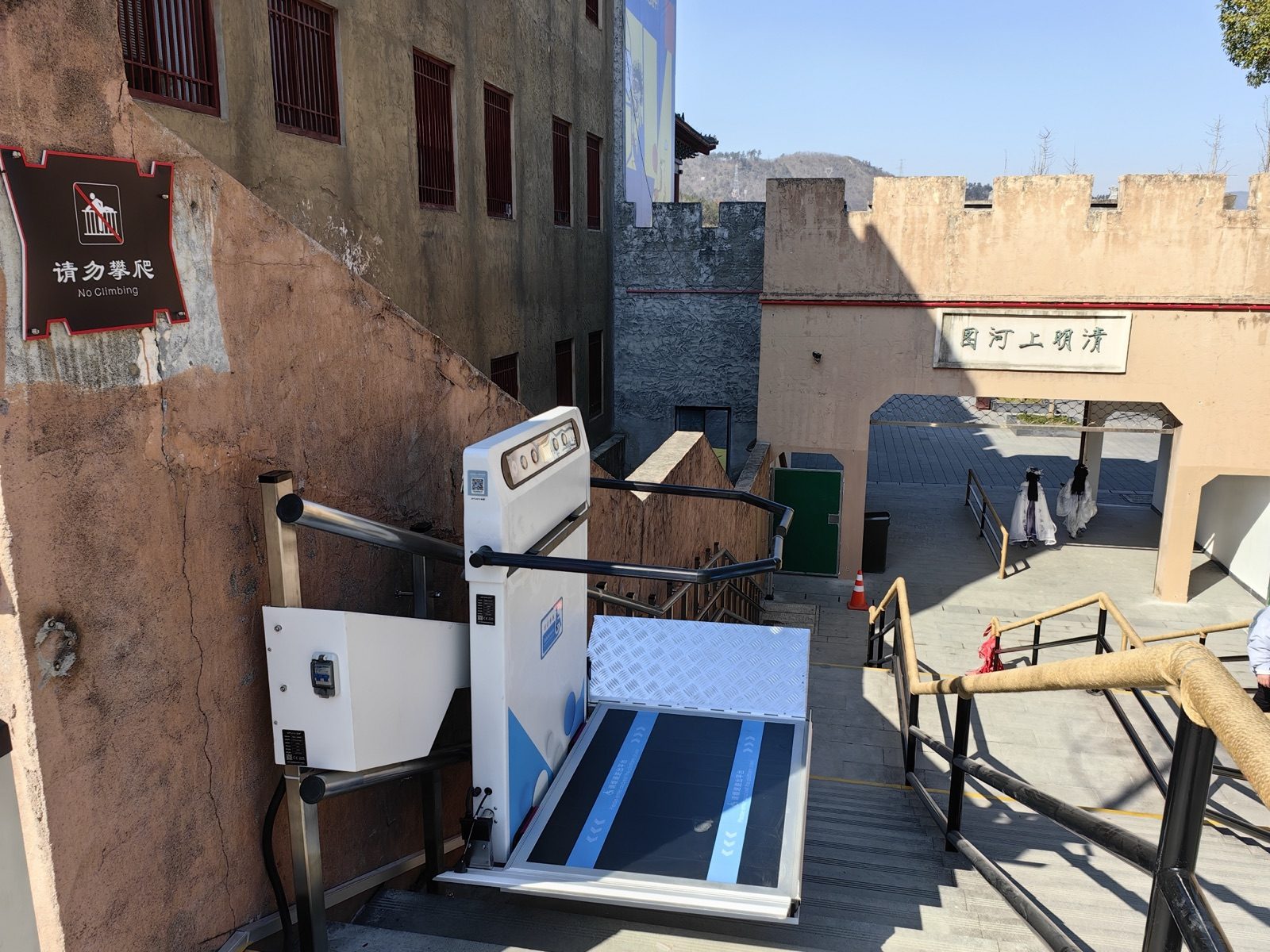

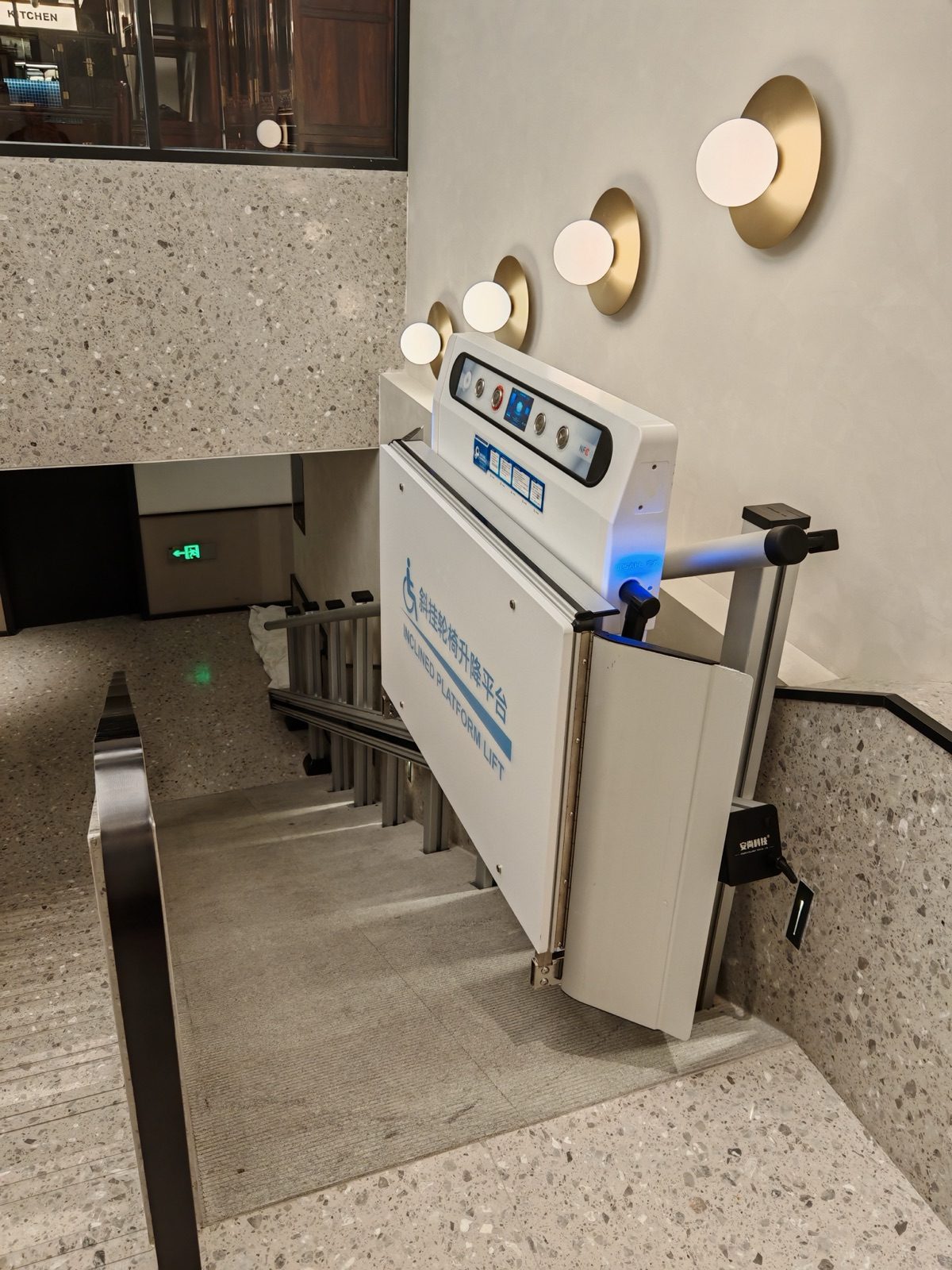

The lift in operation on site.
